Powers You Up with Clean Energy
Get ready to power up your life with the hybrid power inverter from EDECOA.
Whether you're camping, tailgating, or experiencing a poweroutage, this inverter has got you covered.
This inverter is not only strong, stable and programmable, but it also helps you protect the environment with clean energy.

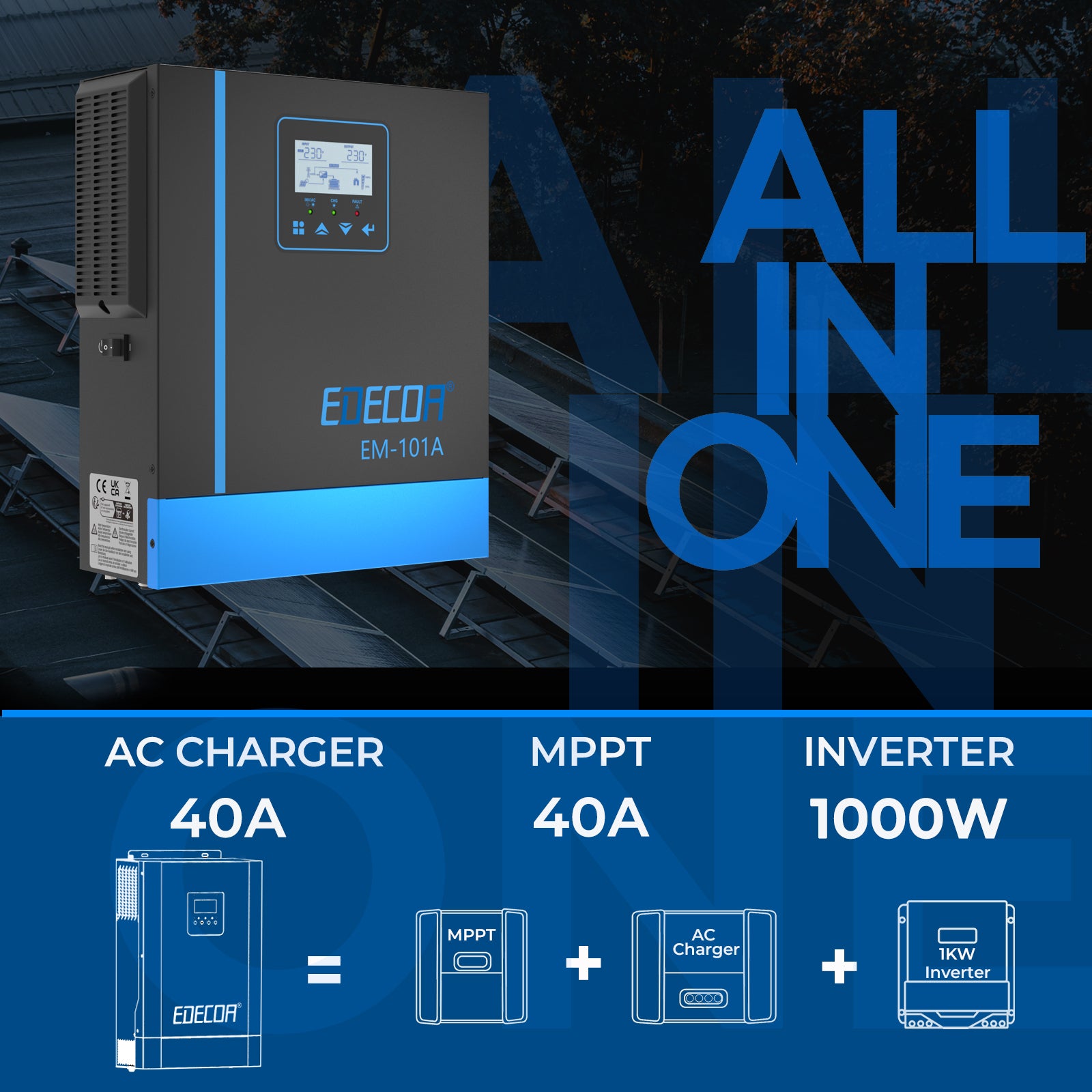

All In One
This inverter is more than just a power source. It has a built-in MPPT Solar Controller and a AC Battery Charger, making it the perfect all-in-one solution for your off-grid power needs.
Multi Working Modes
It can run on both solar energy and AC power. You have the flexibility to use whichever power source is most convenient and more economical, making it the ultimate power solution.
Day and Night Demo

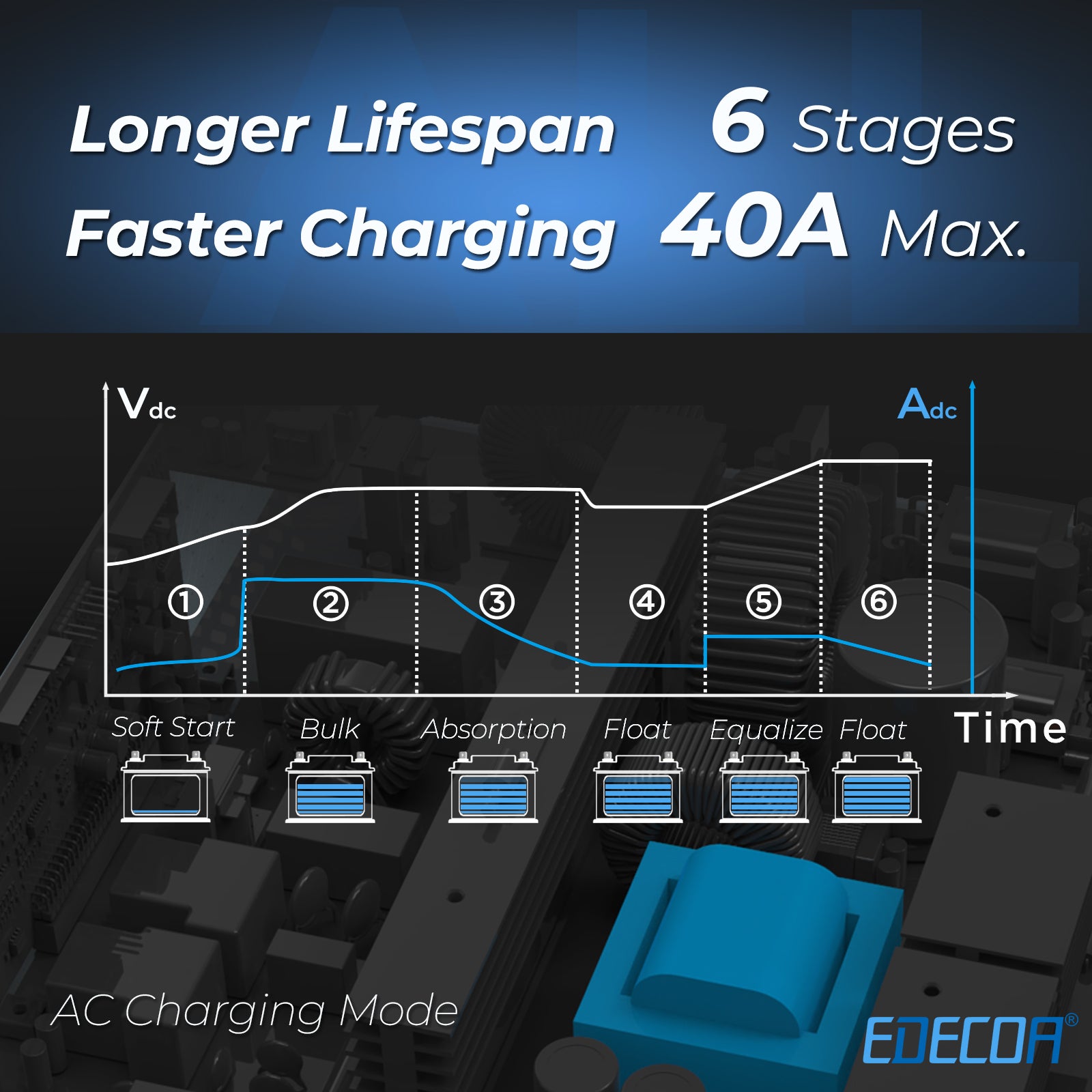

Smart Battery Charging
The 6 phases AC Battery Charger ensures that your batteries are always ready when you need them, while the inverter provides reliable power for all your needs.
WIFI Option
This hybrid inverter has an optional WIFI adapter. You can choose to buy a extra WIFI adapter together with APP.
Product details
Features
-

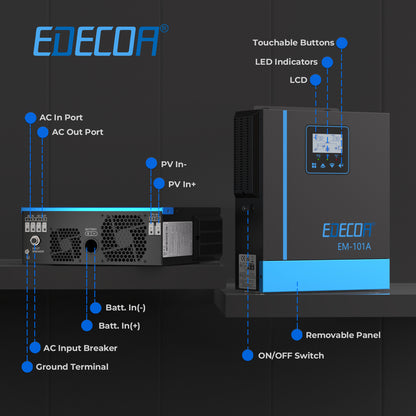

All in one inverter: DC 12V to AC 220V hybrid inverter, built-in MPPT solar charge controller, battery charger, compatible with a wide range of battery types, compatible with PV solar panel input, grid/generator input.
-
Pure sine wave: provides high quality and stable AC power, protects the load, extends the service life of the appliance and has a wide range of applications.
-
Wide range of uses: suitable for caravans, camping, boats, homes etc. and can be connected to a wide range of domestic and office loads.
-

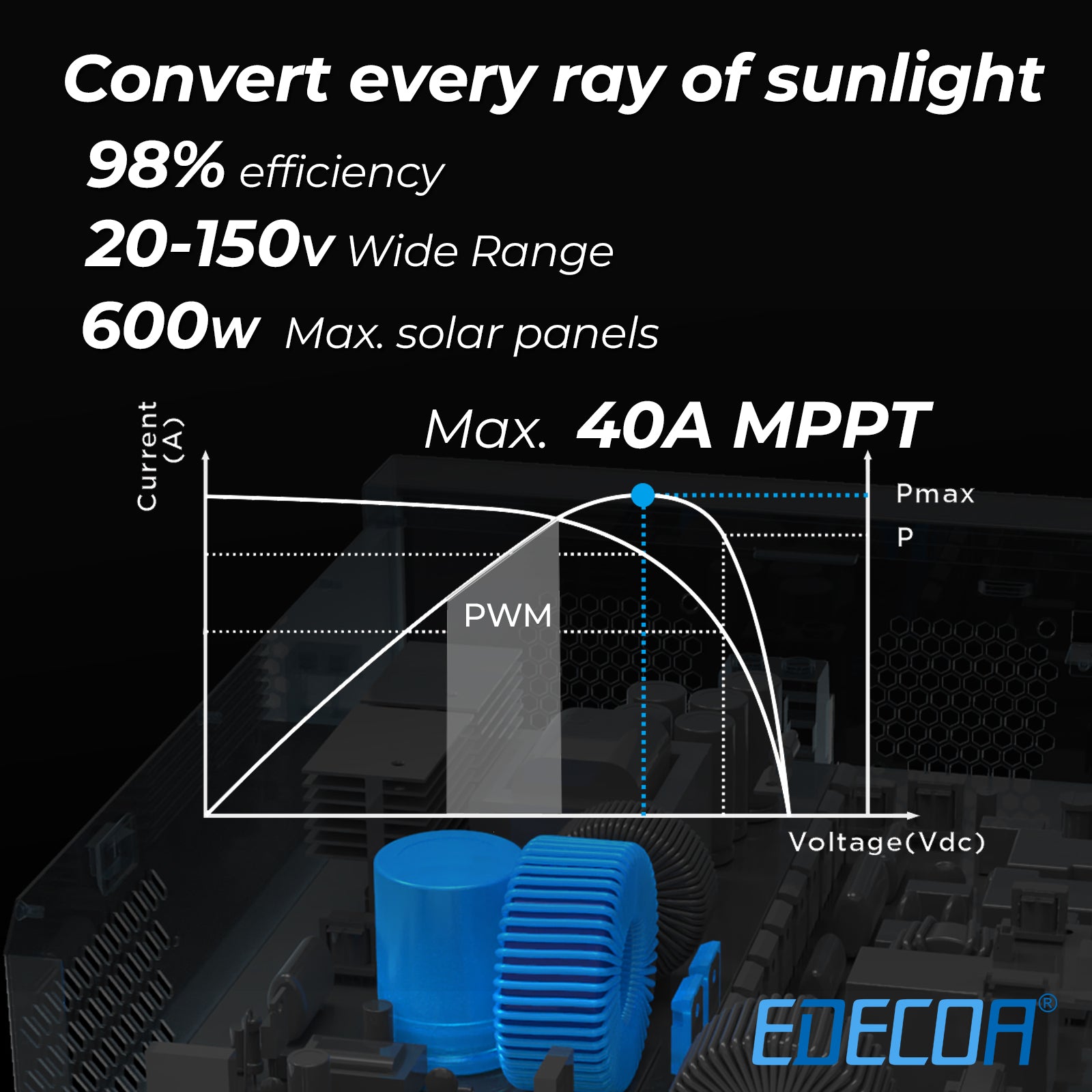

Built-in MPPT solar charge controller: faster and more efficient charging.
-
Wide PV input range: high adaptability to voltage fluctuations for stable equipment operation.
-

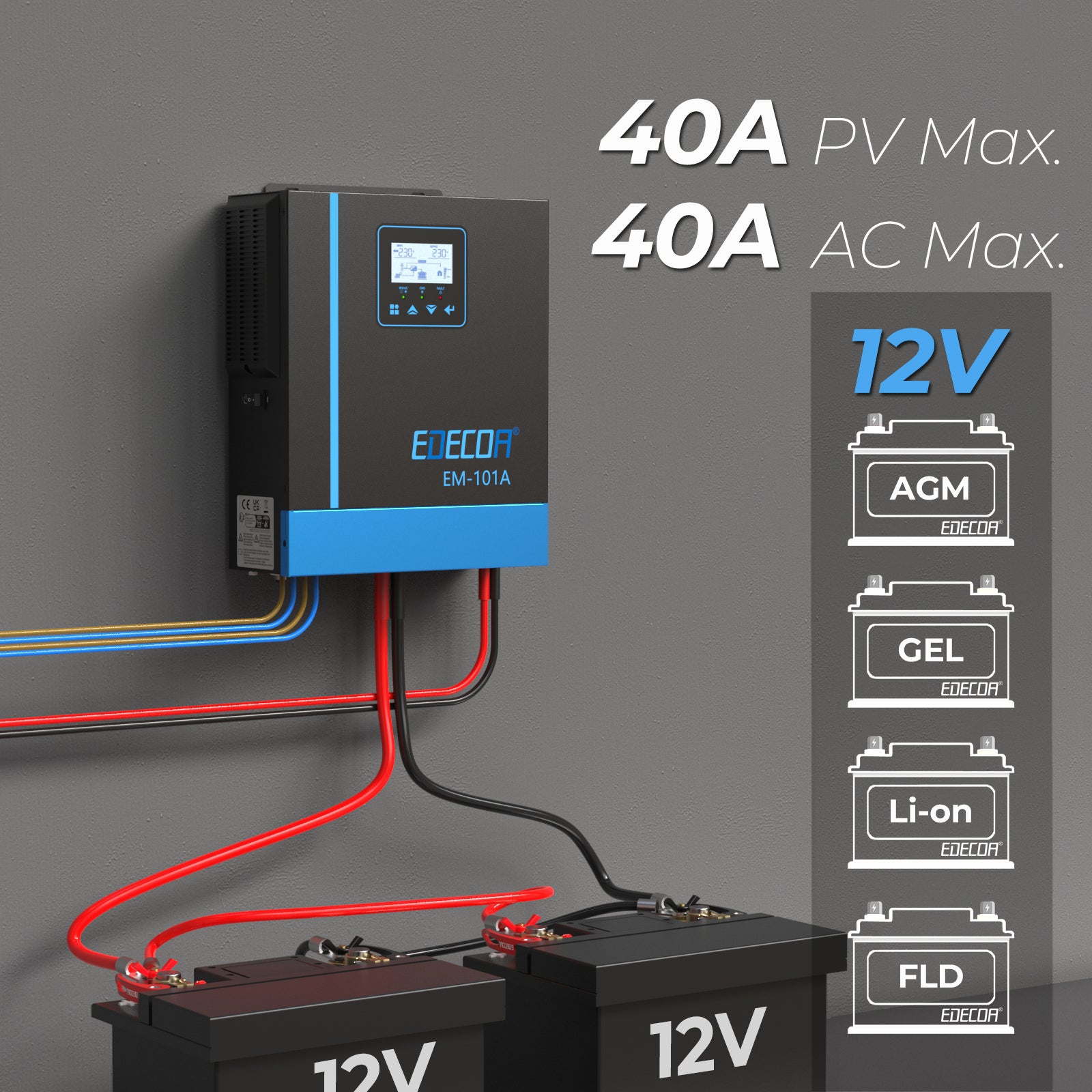

Compatible with multiple battery types: AGM，GEL，Li-ion，FLD. Customised settings for battery type, charging voltage and current.
-

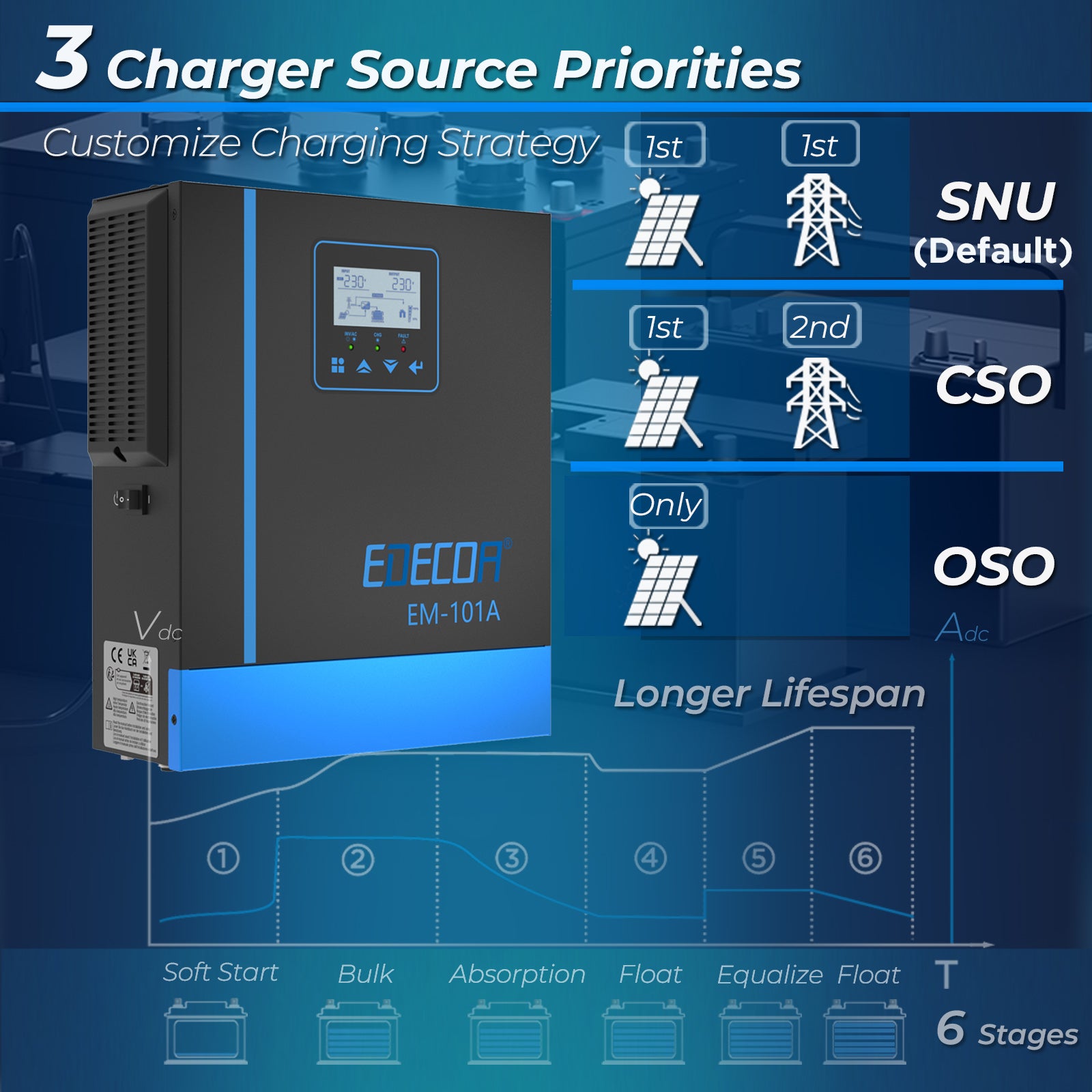

Multiple charging modes: CSO/SnU/OSO
-

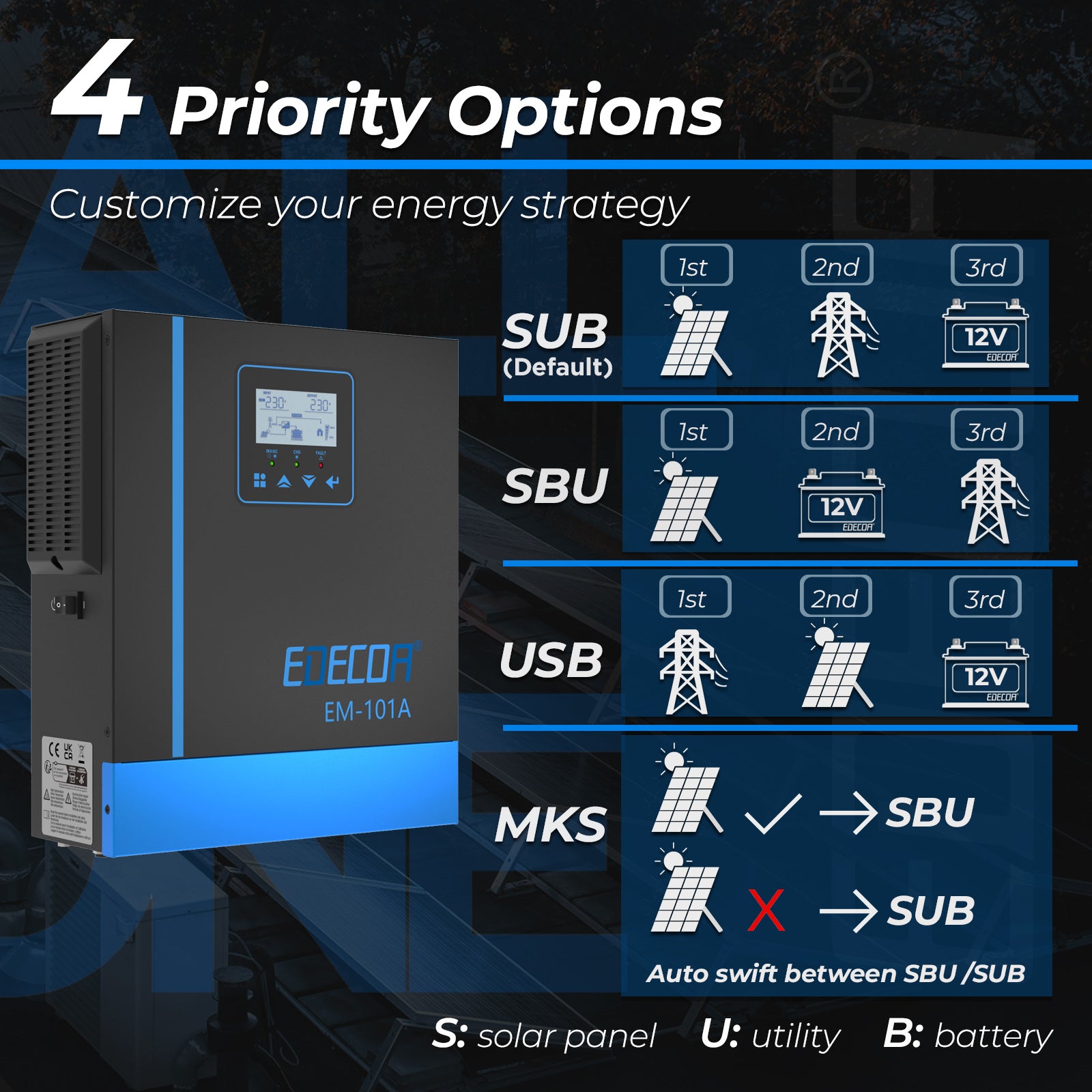

Multiple output modes: USb/SUb/SbU/MKS
-
UPS function: fast switching power supply solution to provide uninterrupted power supply if the utility/generator is disconnected or if solar charging is insufficient.
-

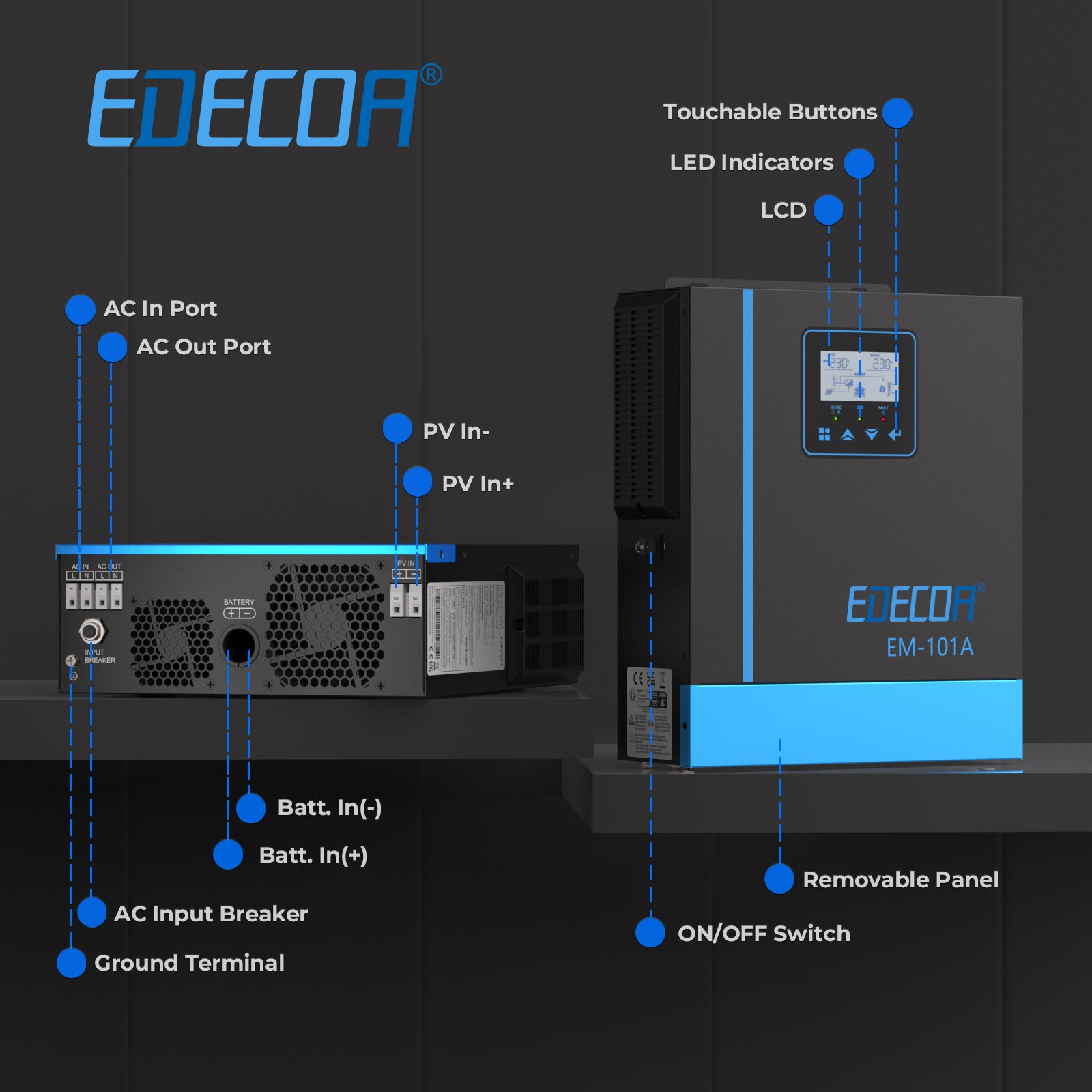

LCD display: dynamic display of system data and operating status, setting of inverter parameters at the touch of a button.
-
Multiple protections: Over loaded protection, Short loaded protection, Over Temperature Protection, Output overvoltage protection, Input undervoltage protection, Input overvoltage protection.
-
Intelligent cooling function: intelligent variable speed fan, depending on the temperature of the equipment to open different cooling effect, effective heat dissipation, extend the life of the system.
-
Cold start function: protects the battery and extends its life.
Specifications

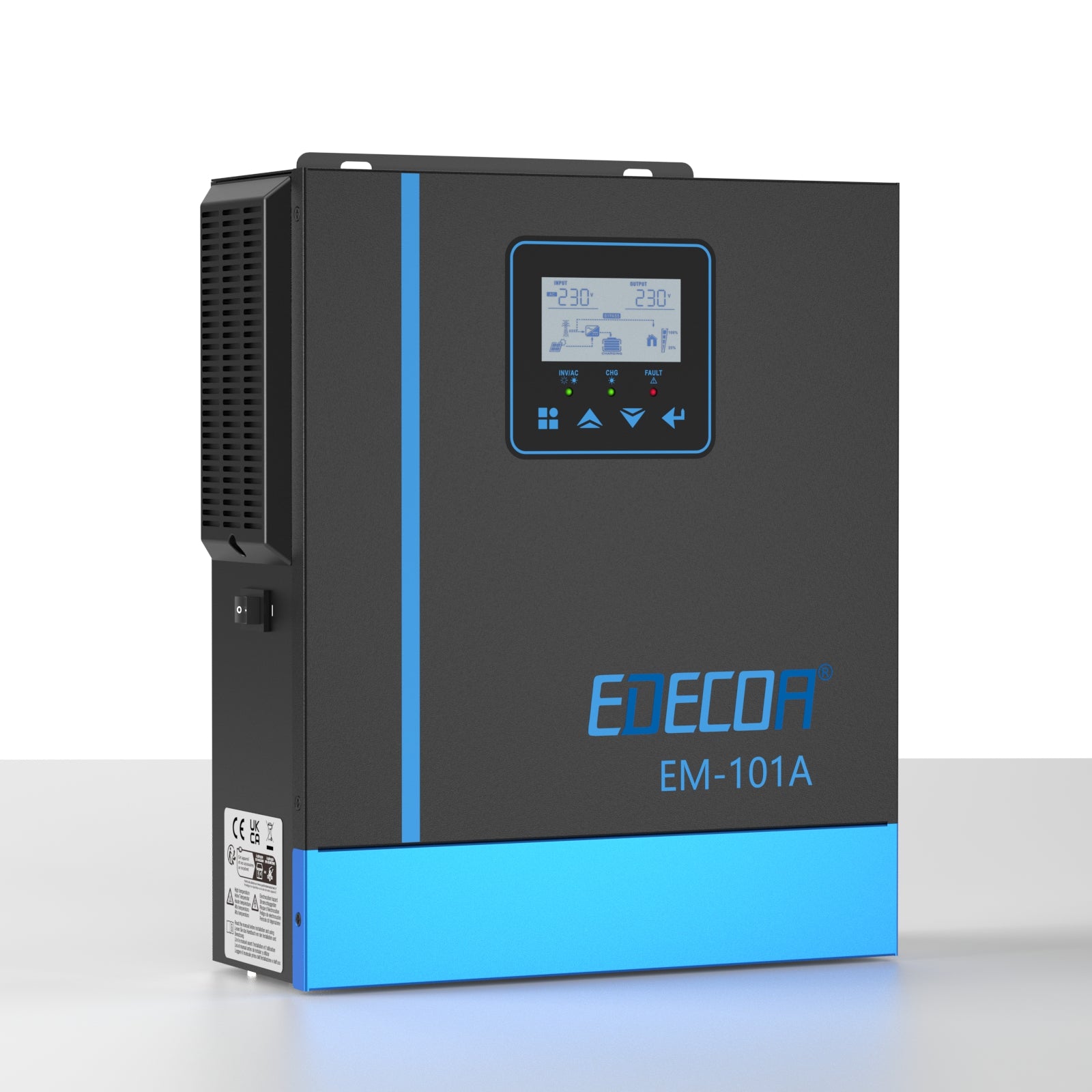

Model: EM-101A
AC Input
Input Voltage Waveform: sinusoidal(Utility or generator)
Nominal Input Voltage: 230VAC
Max AC Input Voltage: 300VAC
Nominal Input Frequency: 50Hz/60Hz(Auto detection)
Efficiency(Line Mode): >95%(Rate R Load, battery full charged)
Low loss Voltage: 170VAC±10V(UPS)；
90VAC±10V(Appliances)
High loss Voltage: 280VAC±10V
UPS Transfer Time: 10ms
AC Output
Rated Output Power: 1000W
Output Voltage Waveform: Pure sine wave
Output Voltage Regulation: 230VAC±5%
Output Frequency: 50Hz
Peak Efficiency: 94%
Overload Protection: 3s@150% load, 5s@110%-150% load
Surge Capacity: 2*rated power for 1 seconds
DC Input
Nominal DC Input Voltage: 12VDC
Cold Start Voltage: 11.5VDC
Low DC Warning Voltage: 11-11.25VDC
Low DC Warning Return Voltage: 11.5-11.75VDC
Low DC Cut-off Voltage: 10.5-10.75VDC
High DC Recovery Voltage: 15.5VDC
High DC Cut-off Voltage: 16VDC
No Load Power Consumption: <28W
Utility Charging Mode
Max AC Charging Current: 40A
Bulk charging Voltage:
Flooded battery: 14.6VDC
AGM/Gel battery: 14.1VDC
Float Charging Voltage: 13.5VDC
Solar Charging Mode
Max PV Array Power: 600W
Max Charging Current: 40A
PV Array MPPT Voltage Range: 20-150VDC
Max PV Open Circuit Voltage: 150VDC
Max Charging Current(AC+Solar): 80A
Efficiency: 98% max
General Specification
Operation Temperature: -10°C-50°C
Storage Temperature: -15°C~60°C
Humidity: 5%-95% Relative Humidity(Non-condensing)
Dimensions (DxHxW): 286*240*91mm
Net weight: 3.3Kg
FAQs
Please read our FAQs page to find out more.
Can I feed the device directly into the network/main supply?
This inverter does not feed power into the home grid. It is a stand-alone off-grid inverter.
Why does the hybrid inverter not recognize my solar modules?
The working PV range of this hybrid inverter is 55-450Vdc. If the connected solar modules don't reach a total of 55Vdc, the hybrid inverter will not recognize your solar system/PV array. We recommend you to connect at least 3 pieces of 24V solar panel in paralle.
Can I also operate the inverter without a battery?
This inverter must work with a battery.
How do I calculate the minimum number of panels to be connected?
The working voltage for 12V solar panels is 15 to 19V and for 24V it is 30 to 38V.
In a series connection, 4 solar panels with 12V (15*4=60V) and 2 solar panels with 24V (30*2=60V) are required.
We recommend connecting one more solar panel for safety.
Can a lithium battery be connected?
Yes, this hybrid inverter is compatible with Li-ion battery. Some models includes the function of BMS communication between your LiFePo4 batteries and the inverter.
