Features

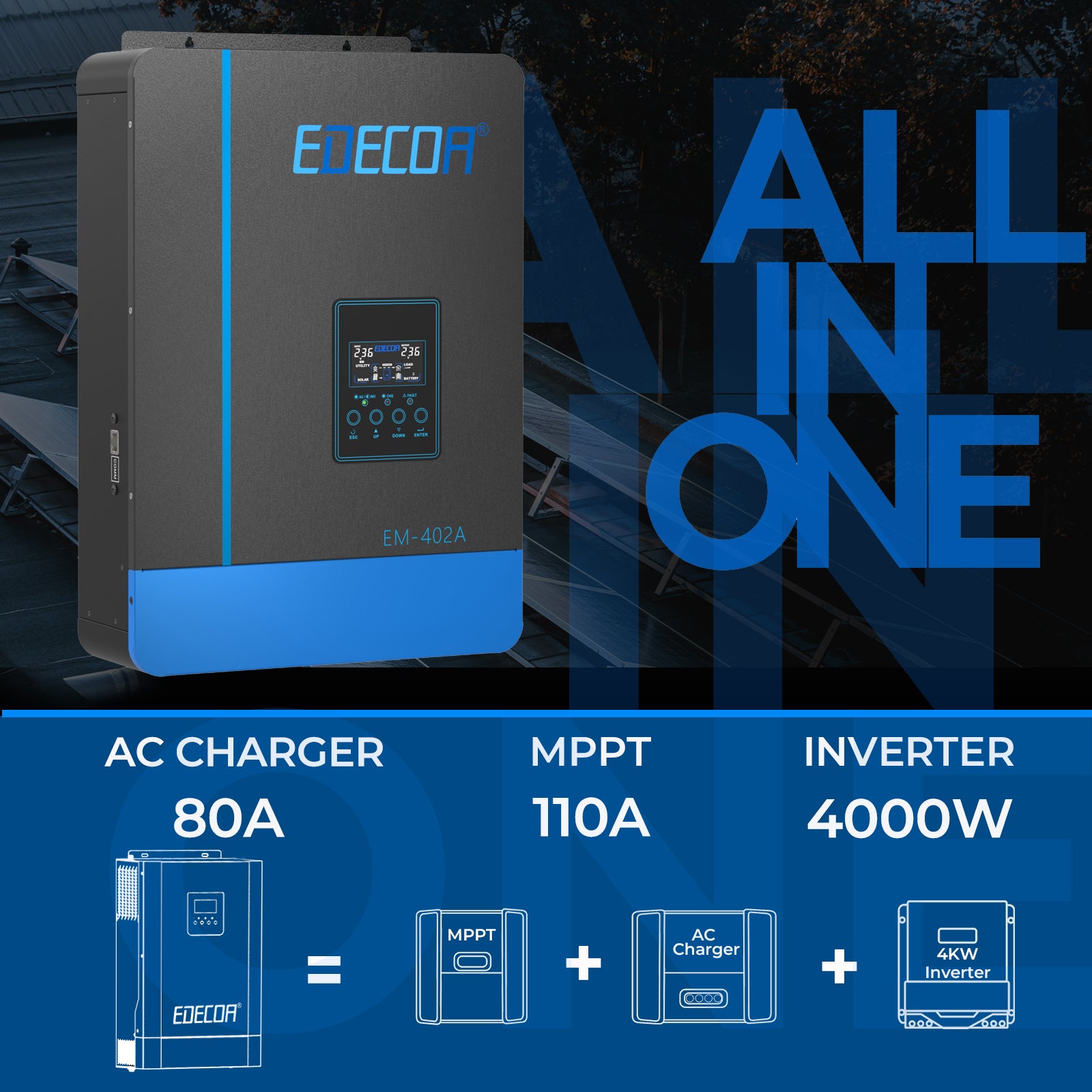

• All in one inverter: DC 24V to AC 220V hybrid inverter, built-in MPPT solar charge controller, battery charger, compatible with a wide range of battery types, compatible with PV solar panel input, grid/generator input.

• Pure sine wave: provides high quality and stable AC power, protects the load, extends the service life of the appliance and has a wide range of applications.

• Wide range of uses: suitable for caravans, camping, boats, homes etc. and can be connected to a wide range of domestic and office loads.

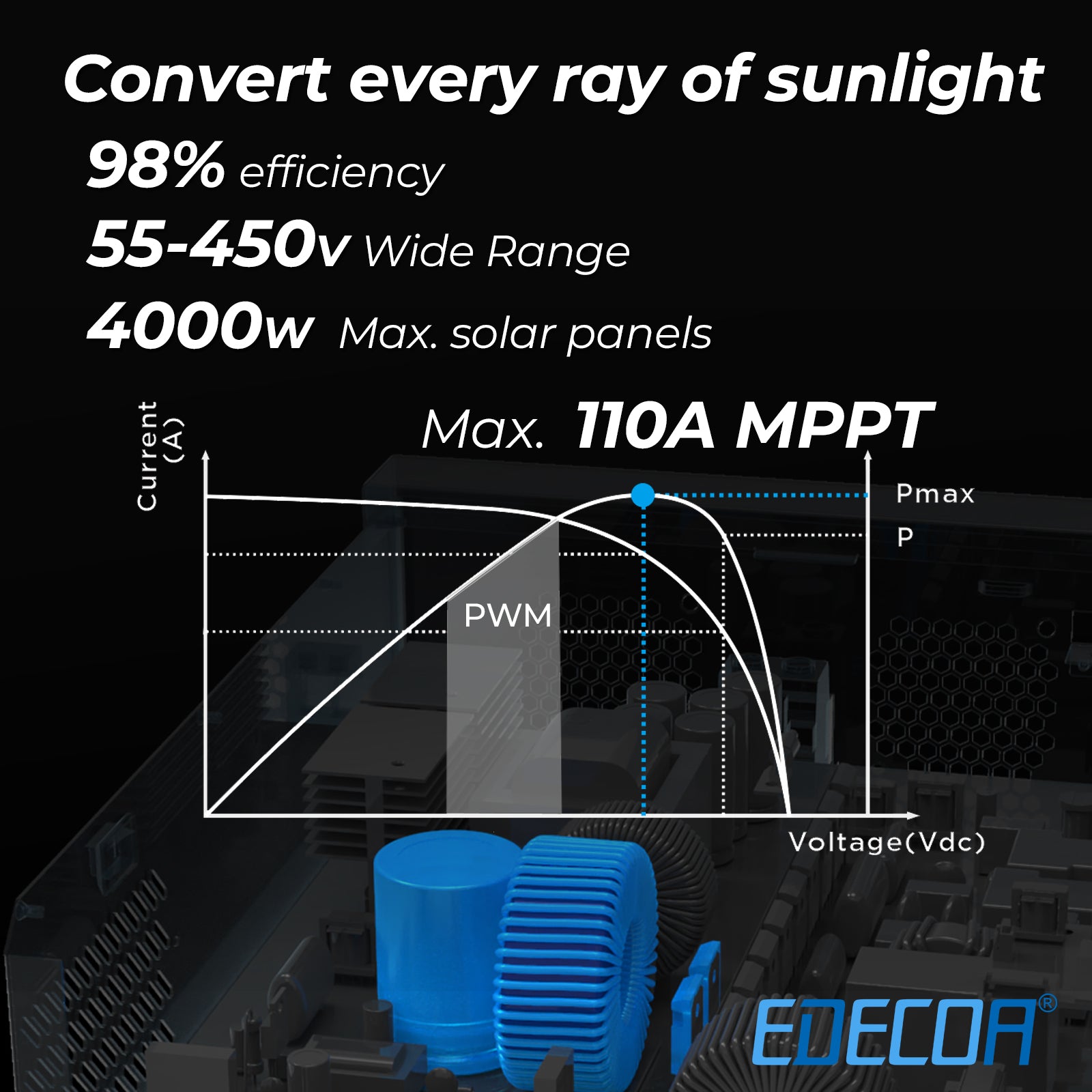

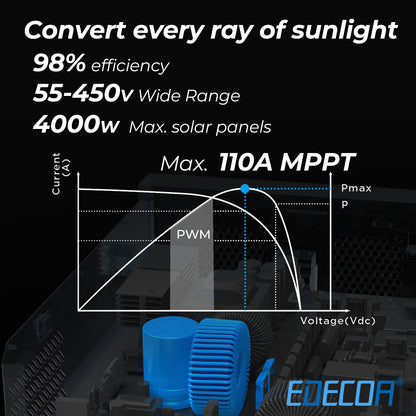

• Built-in MPPT solar charge controller: faster and more efficient charging.

• Wide PV input range: high adaptability to voltage fluctuations for stable equipment operation.

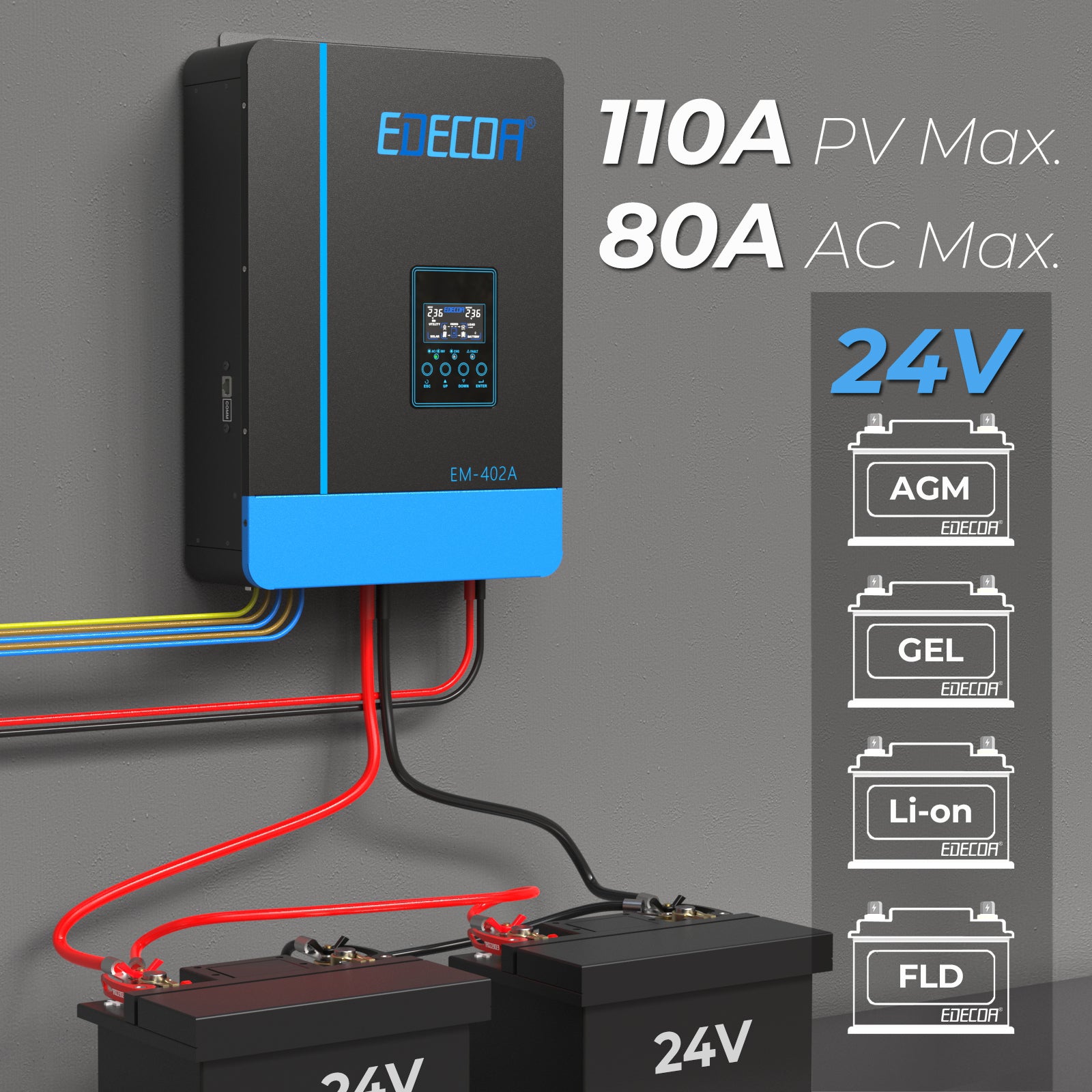

• Compatible with multiple battery types: AGM，GEL，LiFePo4，FLD. Customised settings for battery type, charging voltage and current.

• Multiple charging modes: utility priority, solar priority, utility and solar, solar only.

• Multiple output modes: utility priority, solar priority, battery priority.

• UPS function: fast switching power supply solution to provide uninterrupted power supply if the utility/generator is disconnected or if solar charging is insufficient.

• LCD display: dynamic display of system data and operating status, setting of inverter parameters at the touch of a button.

• Multiple communication methods: RS232/RS485/WIFI. It can be monitored remotely at any time and from anywhere by mobile phone or computer, reacting to the operating status of the equipment in real time and setting the inverter parameters remotely. Contact us for the computer monitoring software and mobile phone APP download address.

• Multiple protections: Over loaded protection, Short loaded protection, Over Temperature Protection, Output overvoltage protection, Input undervoltage protection, Input overvoltage protection.

• Intelligent cooling function: intelligent variable speed fan, depending on the temperature of the equipment to open different cooling effect, effective heat dissipation, extend the life of the system.

• Cold start function: protects the battery and extends its life.

• Power saving mode(ECO): reduces standby power consumption by 70%, saving electricity and preventing the battery from running out of power.



Parameters

AC Input

Input Voltage Waveform: sinusoidal(Utility or generator)

Nominal Input Voltage: 230VAC

Max AC Input Voltage: 300VAC

Nominal Input Frequency: 50Hz/60Hz(Auto detection)

Efficiency(Line Mode): >95%(Rate R Load, battery full charged)

Low loss Voltage: 170VAC±7V(UPS); 90VAC±7V(Appliances)

High loss Voltage: 280VAC±7V

UPS Transfer Time: 10ms typical(UPS); 20ms typical(Appliances)

Output

Rated Output Power: 4200VA/4000W

Output Voltage Waveform: Pure sine wave

Output Voltage Regulation: 230VAC±5%

Output Frequency: 50Hz or 60Hz

Peak Efficiency: 94%

Overload Protection: 5s@150% load, 10s@110%-150% load

Surge Capacity: 2* rated power for 5 seconds

DC Input

Nominal DC Input Voltage: 24VDC

Cold Start Voltage: 23VDC

Low DC Warning Voltage: 20.2-22VDC

Low DC Warning Return Voltage: 22-22.5VDC

Low DC Cut-off Voltage: 20-20.5VDC

High DC Recovery Voltage: 29VDC

High DC Cut-off Voltage: 31VDC

No Load Power Consumption: <25W

Saving Mode Power Consumption(ECO): <10W

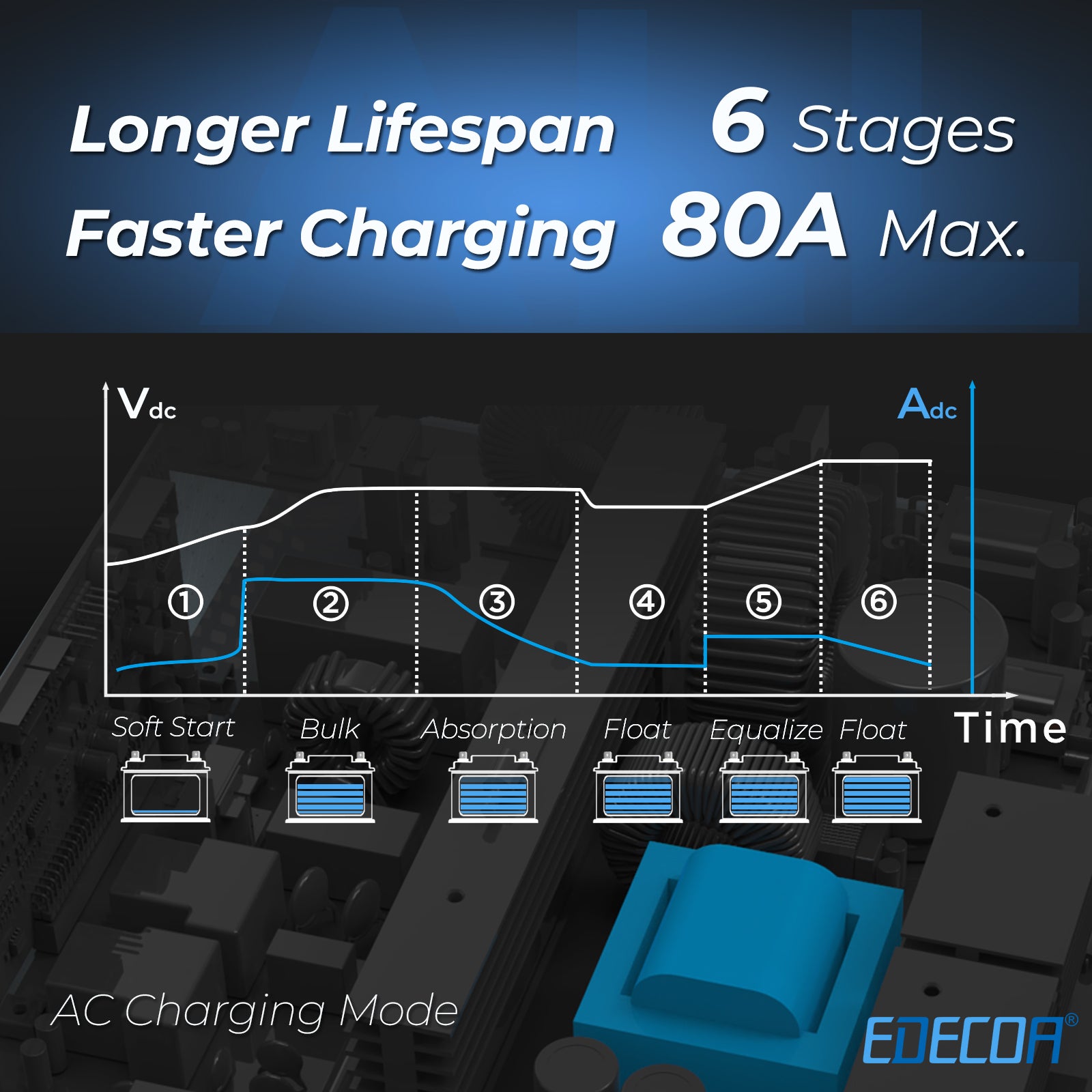

Utility Charging Mode

Max AC Charging Current: 80A

Bulk charging Voltage:

Flooded battery: 29.2VDC

AGM/Gel battery: 28.2VDC

Float Charging Voltage: 27VDC

Lithium battery BMS communication: Yes

Solar Charging Mode

Rated Power: 4000W

Max Charging Current: 110A

PV Array MPPT Voltage Range: 55-450VDC

Max PV Open Circuit Voltage: 450VDC

Max Charging Current(AC+Solar): 110A

Efficiency: 98% max

General Specification

Operation Temperature: 0°C-55°C

Storage Temperature: -15°-C~60°C

Humidity: 5%-95% Relative Humidity(Non-condensing)

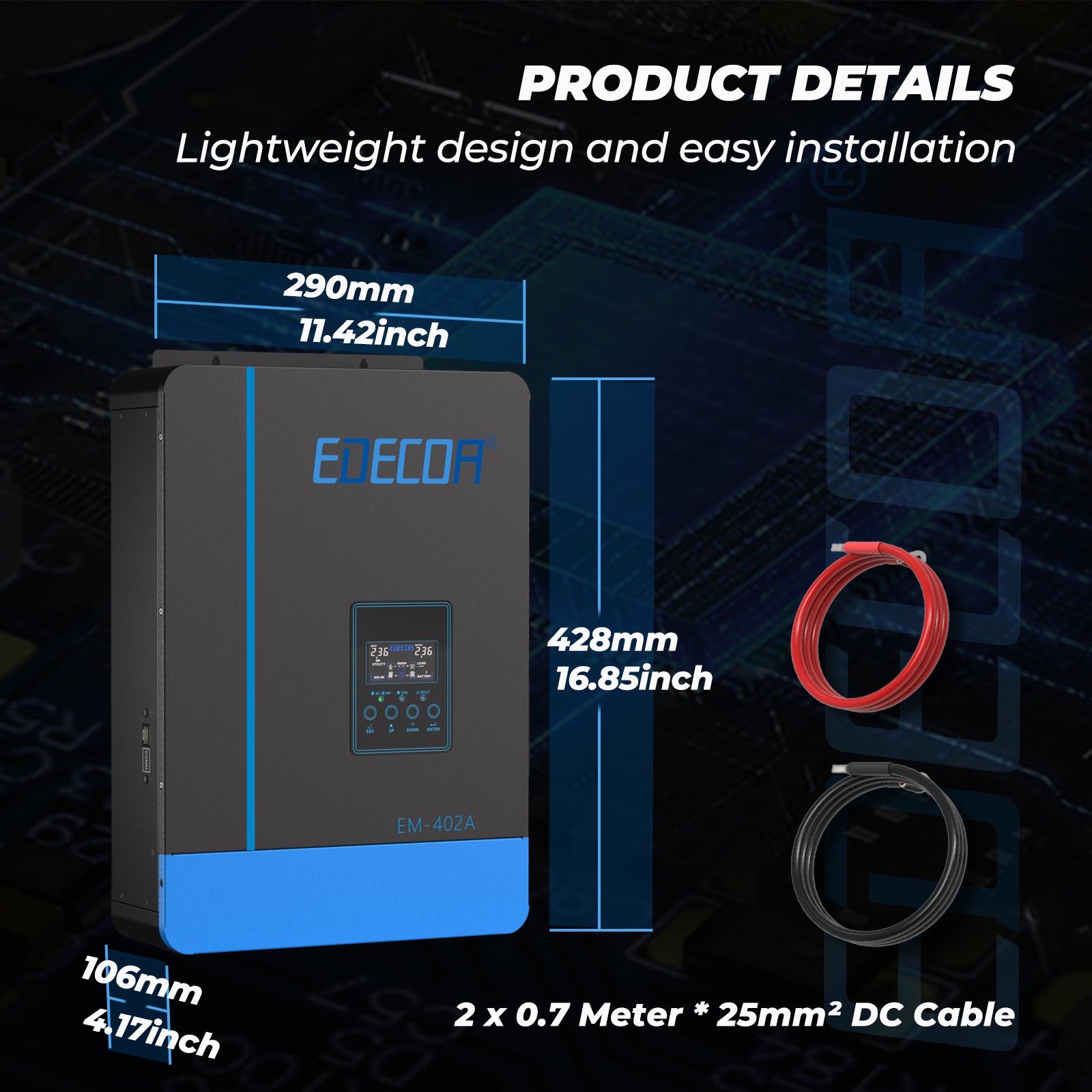

Dimensions (DxHxW): 428*290*106mm

Net weight: 7.0Kg

Gross weight: 9.0Kg

Protect Function:

Over loaded protection；

Short loaded protection；

Over Temperature Protection;

Output overvoltage protection;

Input undervoltage protection;

Input overvoltage protection;

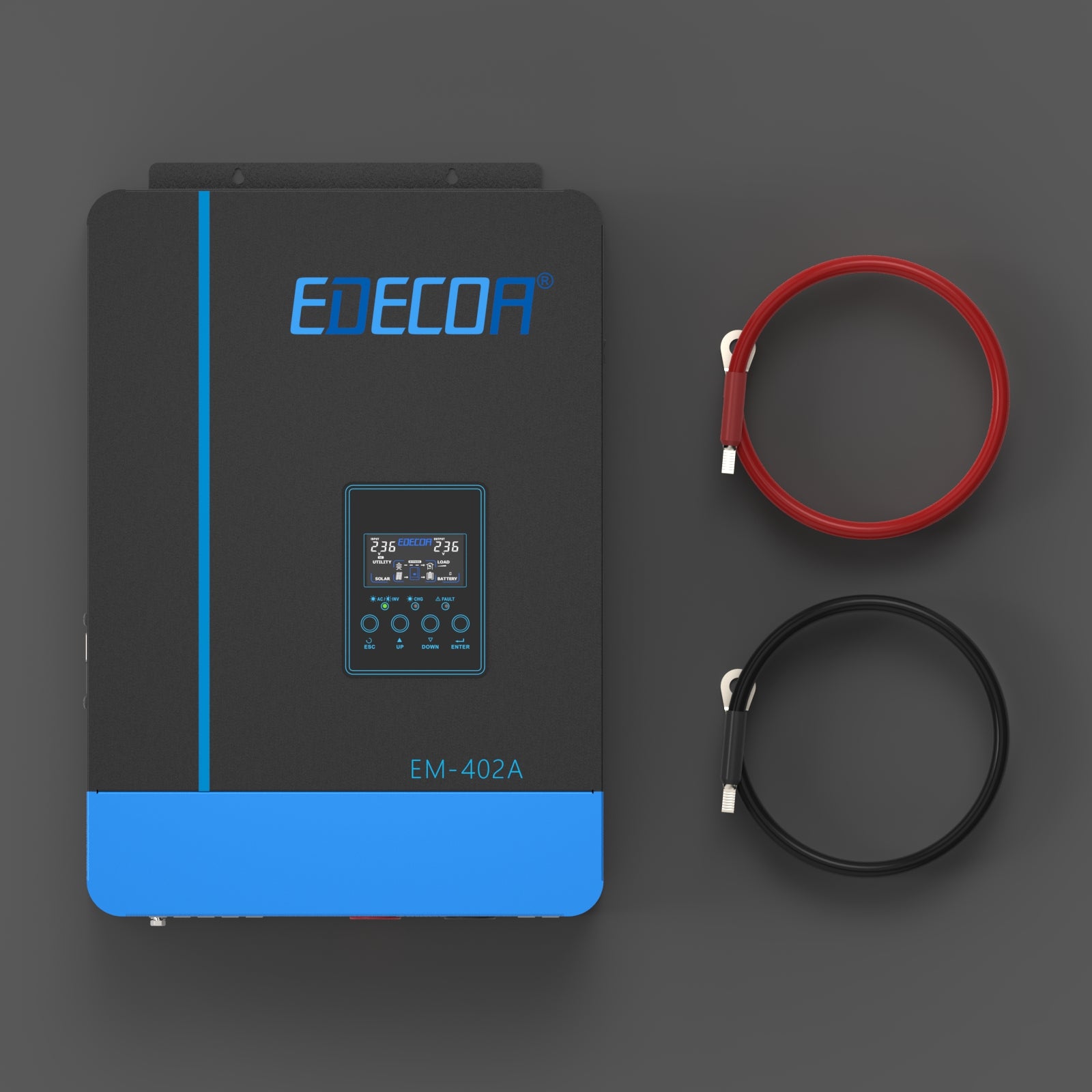

Battery Cable(Cross-sectional area*length): 25mm²*0.7M
